■ 1 Year Warranty and 1 Year Free Udpate.
■ Support Languages: English, German, Spanish, Portuguese, Dutch, Polish, Swedish, French, Italian, Russian.

( Please tell us about your S/N of machine to activate the language you need after you get it. Thanks~)

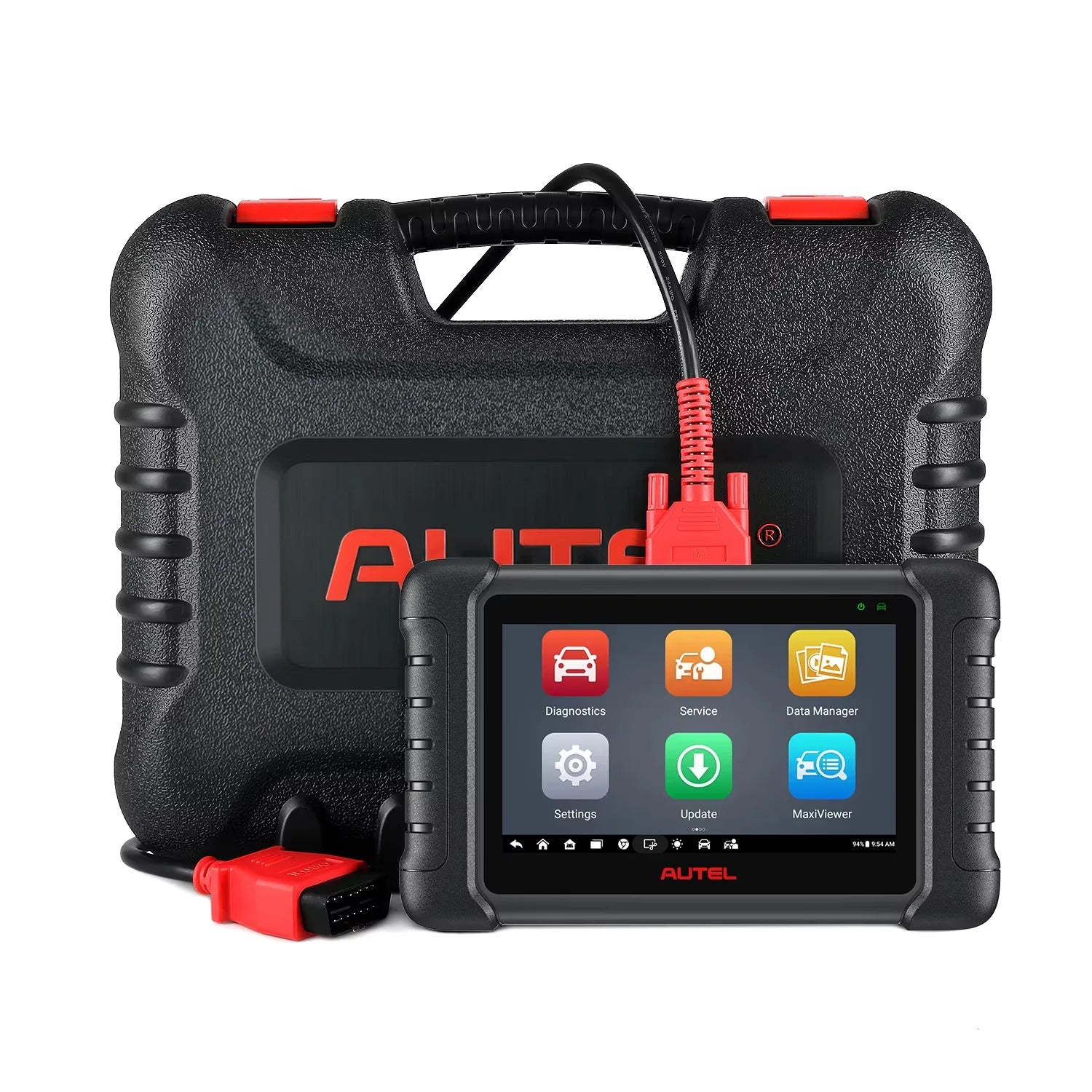

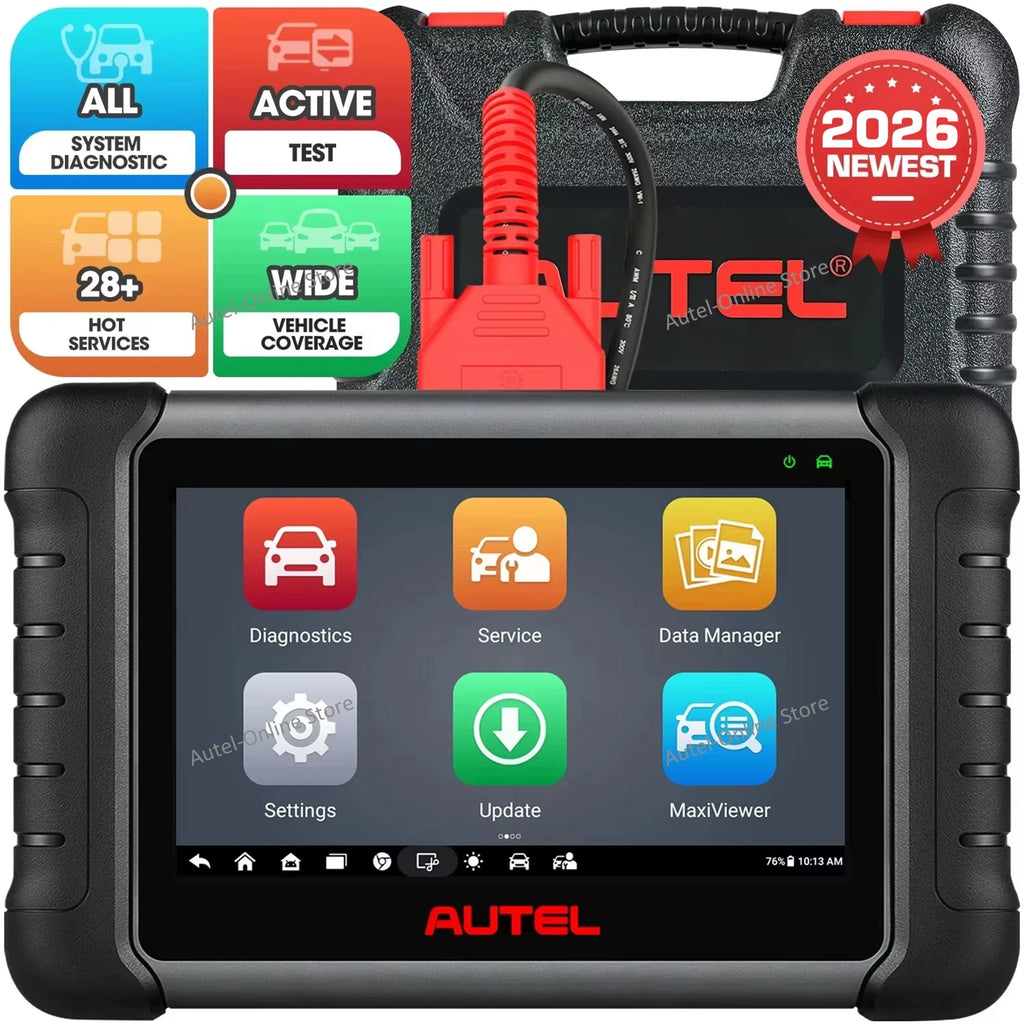

Autel Scanner MaxiCheck MX808S, US Ver. of MaxiCOM MK808S/ MK808Z,3000+ Active Test, 36+ Service, OE All System OBDII Diagnostic Tool, FCA Autoauth

Autel MaxiCOM MK808S Same as MK808S/MK808Z, ✅Android 11 ✅5X faster RK3566 CPU✅4+64G ROM+RAM, ✅2.4&5.0 GHz dual Wi-Fi ✅ 99% vehicle coverage✅Active tests ✅36+ Service ✅All system scan ✅AutoAuth for 2018+ Fiat Chrysler JeEp Dodge, etc., can pair with endoscope MV105s/108s; newly added Wi-Fi Print, Bi-directional Control,manage your repair more conveniently.

Autel MX808S Main Features:

✅36+ Type of Services/ Resets: Oil Reset, SAS Calibration, ABS Bleeding, Injector Coding, Battery reset, EPB reset etc.
✅3000+ Bi-direcitonal Tests for windows, lights, actu-ators, valves, pumps.
✅Scanning All Systems, for codes reading/ cl.earing, 5in1 live data, freeze frame, ECU Info, complete OBD2 functions, stable wired connection.
✅5X Faster Auto Scan & Auto VIN technology, easiest vehicle identifiction, one-click all modules scanning.
✅Report WIFI Printing, report cloud management.
✅Can work with endoscope MV105/MV108 to inspect hard-to-reach areas.
✅NO regional lockout (NO IP restriction)
✅1 Year Free Updates with regularly updated new vehicle software, Autel bidirectional scan tool MX808S automotically checks for updates once connected to WIFI, you can download new released software unlimited times during subscription.

Complete Bidirectional Control:

Autel MaxiCheck MX808S is a full bidirectional scan tool. It can active many vehicle-specific systems, subsystems, and components such as relays, injectors, coils, solenoids valves, and actuators like:

Turn on/off the radiator fan, lights, sound horn, fuel pump, etc. ✅Modulate the throttle ✅Open/close windows ✅Operate mirrors ✅Test the device acceleration ✅oil pressure control ✅vehicle level position ✅inlet & outlet valve, open brakes ✅wheel speed sensor supply ✅parking brake, and many others.

NOTICE: Function menu varies by vehicle make, model and year. Only the available tests display in the menu.

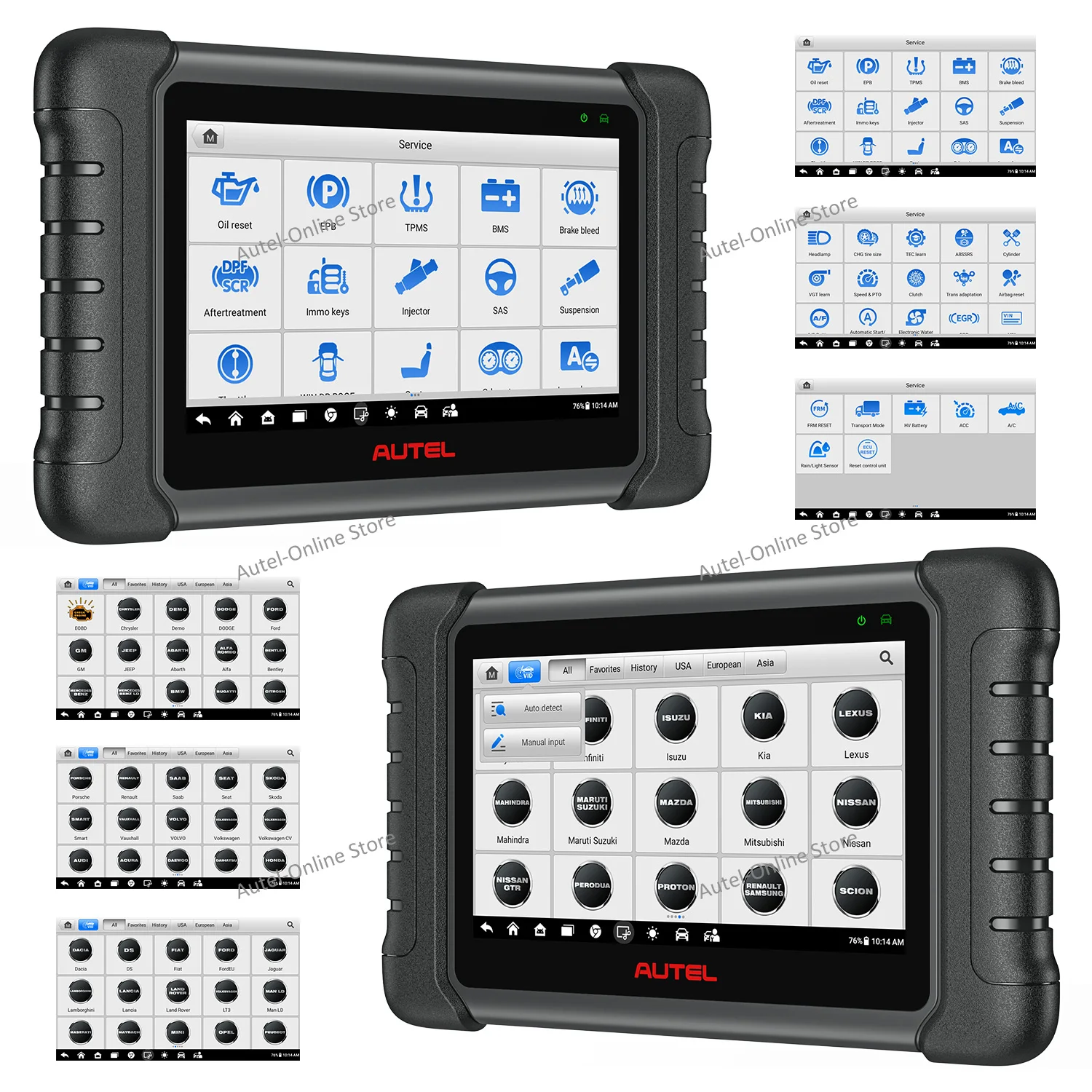

36+ HOT Resets & Relearns, Get Your Max Productivity:

Aside from the following most commonly-used service functions in the US market that you expect:

Oil Reset, EPB, TPMS Reset (indirect), IMMO Keys (basic), BMS Reset, Brake Bleed, DPF SCR Aftertreatment, Injector Coding, SAS, Suspension, Throttle Adaptation, WIN DR ROOF, and A/F Reset. You’ll also find plenty of newly-added service functions that cannot be found on other scan tools. To name a few:
Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, ABSSRS, Cylinder, VGT Learn, Speed & PTO, Clutch, Trans adaptation, Airbag Reset, Automatic Start/Stop, Electronic Water, FRM Reset, Transport Mode, HV Battery, ACC, A/C, Rain/Light Sensor and much more.

OE-Level All Systems Diagnostic:

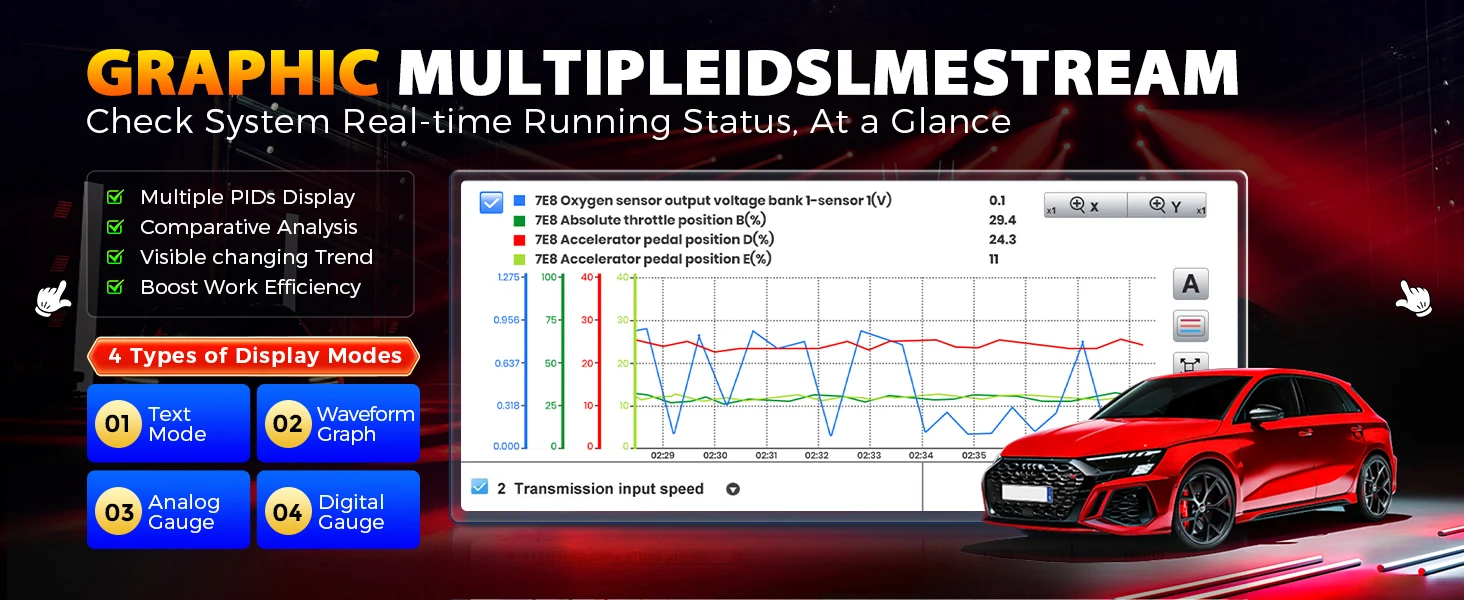

The MX808S dealer-level scanner, like Snap-on tools, effectively works all cars for all system diagnostics. It reads/clears codes, provides ECU info, displays 5-in-1 Live Data, performs active tests, and special functions for all available modules. With a few clicks, you can easily understand the vehicle's condition. The convenient Wi-Fi printing feature allows you to generate a detailed report, highlighting the exact nature of the problem.

AutoVIN & AutoScan (2006+), Rapidly Identify VIN and Scan Systems:

This advanced Autel MX808S scanner also allows rapidly identifying most cars made after 2006, to get detailed information like “manufacturer, make, model, type, fuel type, engine info, etc.”, then instantly scanning all diagnosable ECUs and executing testing with only one tap.

This will save you much time and energy rather than going through various steps.

Why this function doesn’t work?
1.Make sure the car is made after the year 2006.
2.Check if there is a poor network connection.
3.AutoVIN recognition isn't 100% available. You may go with manual input for a precise scan.

10000+ Vehicle Coverage, Enhanced OBD2 Scanner:

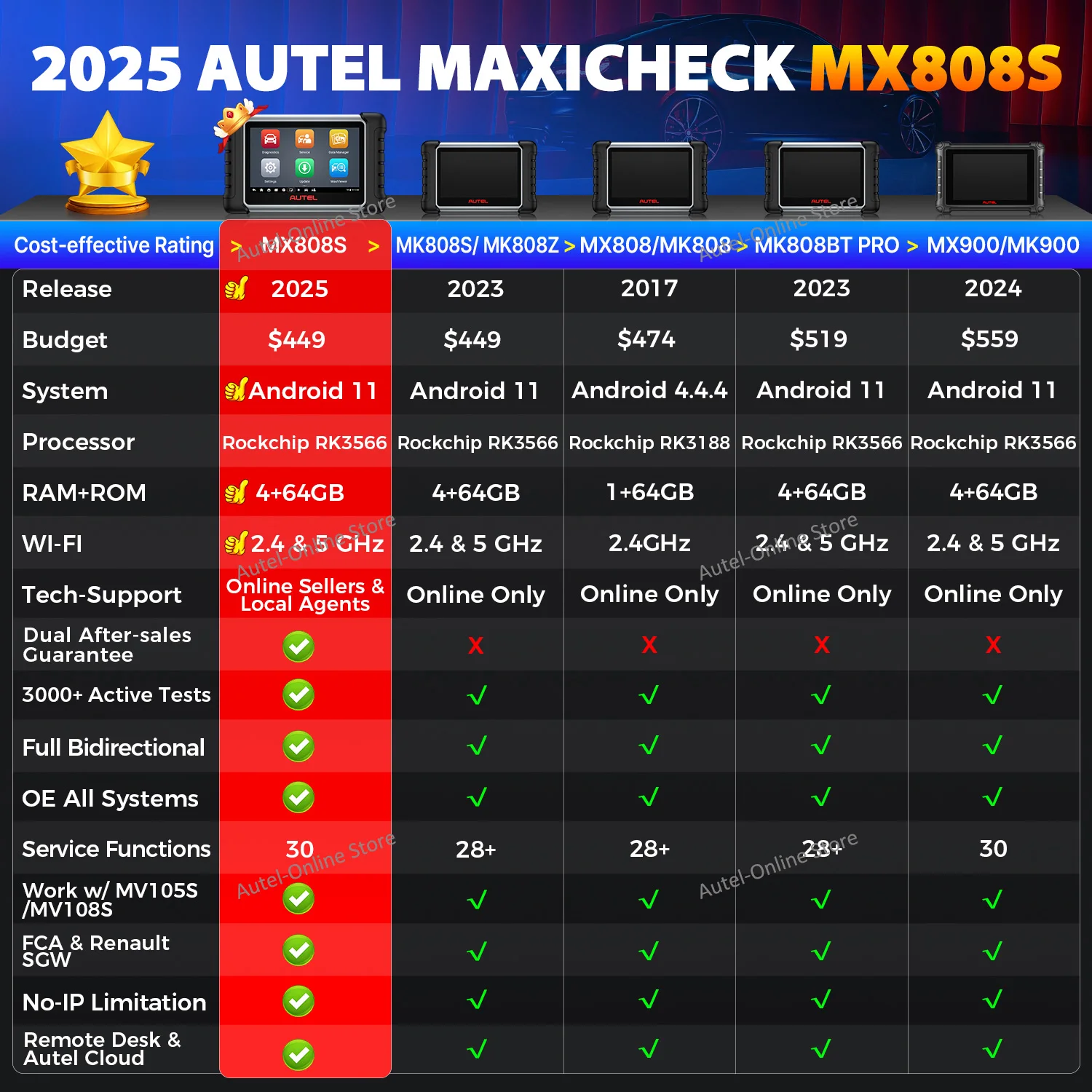

Autel OBDII scanner MX808S shares same wide vehicle coverage as Autel MK808S/ MK808/ MK808BT Pro, covering 10000+ US, Asian, EU vehicles, more newer cars are in consistant adding. Autel MX808S car scan tool is compatible with over 95% OBD2/EOBD cars, fast option for OBDII/ EOBD vehicle diagnosis is available to present a quick way to check DTCs, locate the cause of a MIL, monitor status prior to smog check, verify repairs and etc.

10+ High-end Functions:

✅2018+ FCA Auto Auth:Autel exclusive features, It performs diagnostics and services directly on 2018+ Jeep/Chrysler/Fiat/Dodge/Ram ✅Endoscope: connect with the Autel MV105S/108S for inside vehicle parts and other confined place inspections such as HVAC, ect.✅Autel Cloud: Faster access to first-hand data reports, share via QR/Email/SMS Anytime/Anywhere✅ Shop Manager, Data Manager, Remote Desk APP for the efficient issue and instant Autel support assistance.

Visual Inspection Check:

One of this Autel diagnostic tool’s stands-out features for mechanics is the optional endoscope Autel MaxiVideo MV105S & MV108S. The cameras proved to be useful that can get freely access to lots of narrow hard-to-reach areas like engine, fuel tank, braking system, etc., and display crystal-clear images on MX808S’ large screen. You can see the hidden damage on a vehicle without needing to strip anything down. Note that they are sold separately.

Report to Cloud Management

Easy report management via Cloud, sharereport via Q-R Code/ email/ text message, unburden locate storage.

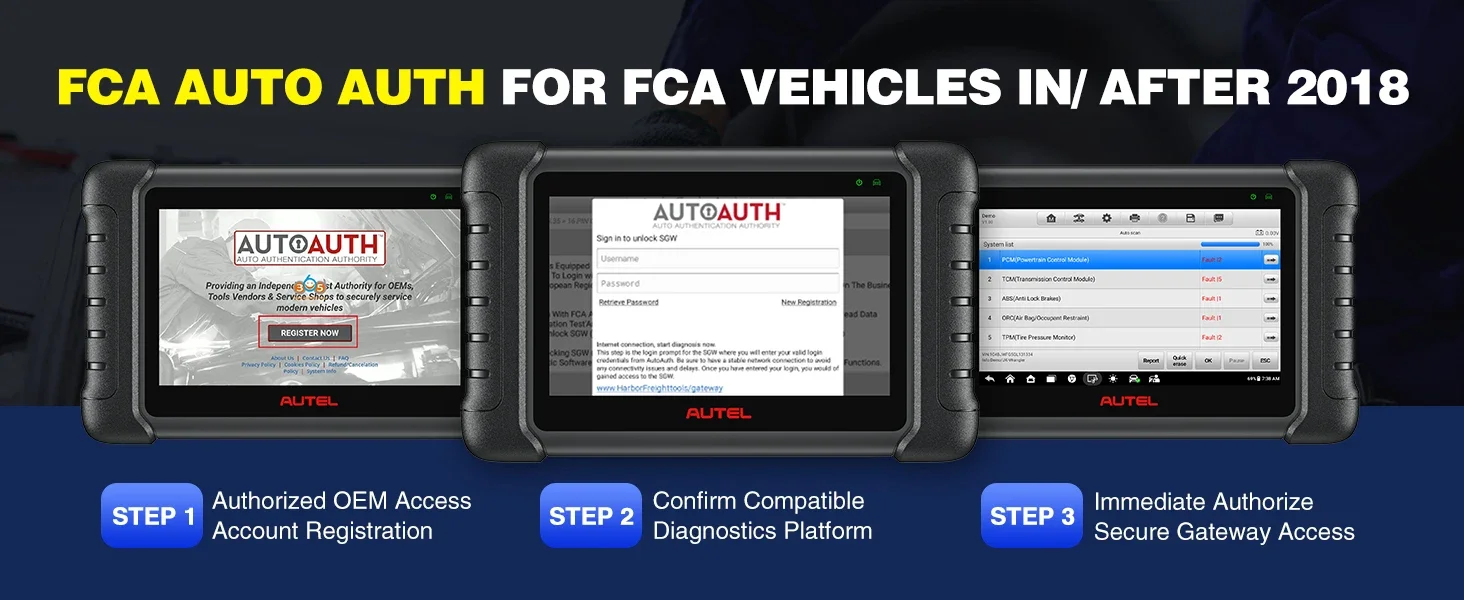

2018+ FCA Access:

Now this Autel MK808S scanner can be the licensed diagnostic tool to get diagnostic access to FCA SGW-equipped cars: 2018-2025 Chr-ysler, Fi-at, D0d.ge, Je*p, Al.fa R0m.eo, etc. You’ll have the equal power as the scan tool does on non-SGW-equipped vehicles: clear codes, bi-directional functions, active tests, actuation & relearns, IMMO k*y programming (pull PIN & write), and ADAS calibration (provide procedures). Just register with AutoAuth Services.

Specifications:

• Operating system: Android 11
• Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution
• Connectivity:
-Wi-Fi（802.11a/b/g/n/ac）
-USB 2.0，Mini USB 2.0
-SD Card (Support up to 64GB)
• Sensors: Light sensor for brightness auto adjust
• Audio Input/Output: Input: N/A; Output: Beep
• Power and Battery: 3.7 V/5000mAh lithium-polymer battery; Charges via 5 VDC power supply
• Input Voltage: 5 V/1.5 A
• Operating Temp: 0 to 50°C (32 to 122°F)
• Storage Temp: -10 to 60℃ (14 to 140°F)
• Dimensions(WXHX D): 270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”)
• Weight: 885 g (2.31 lb.)
• Protocols:
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6

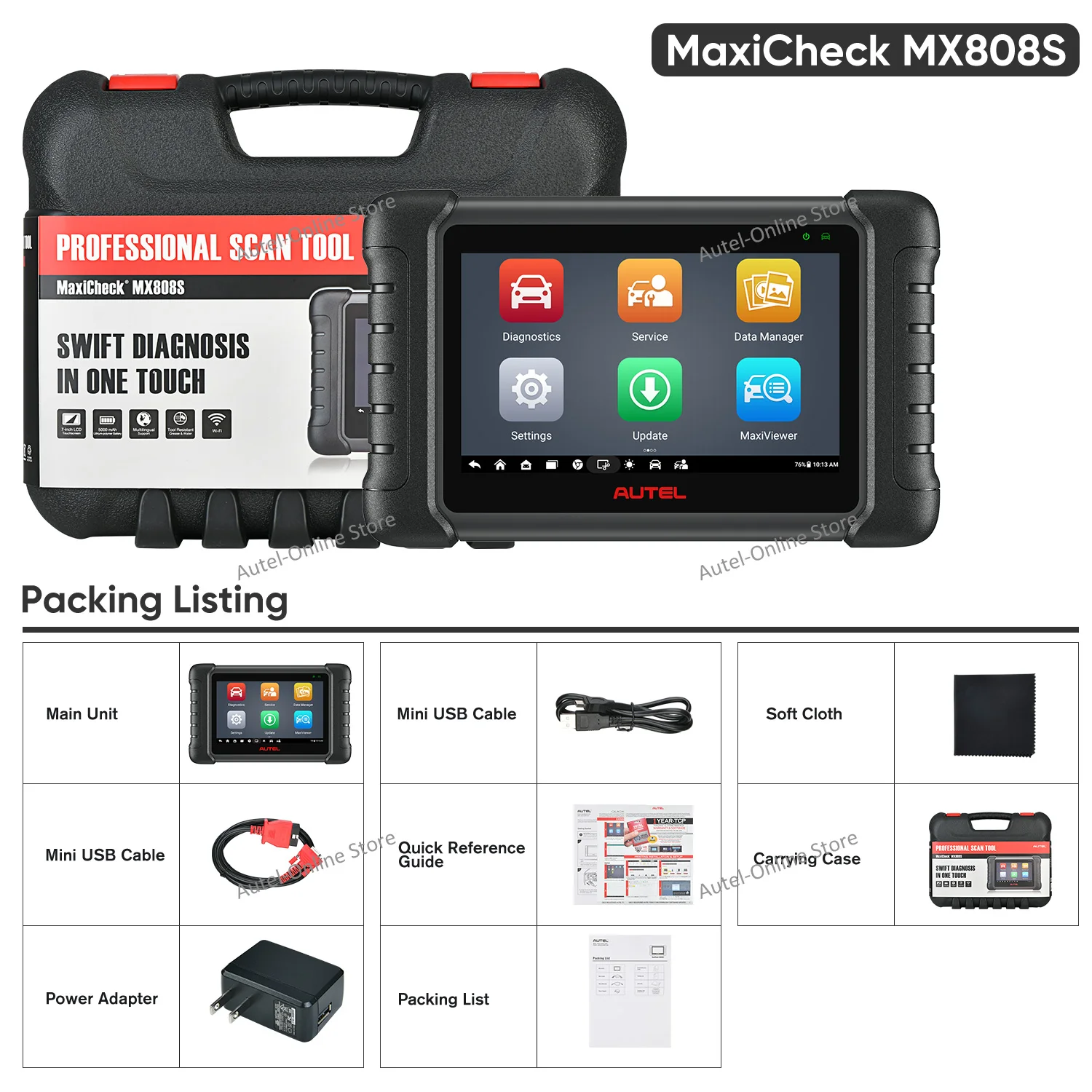

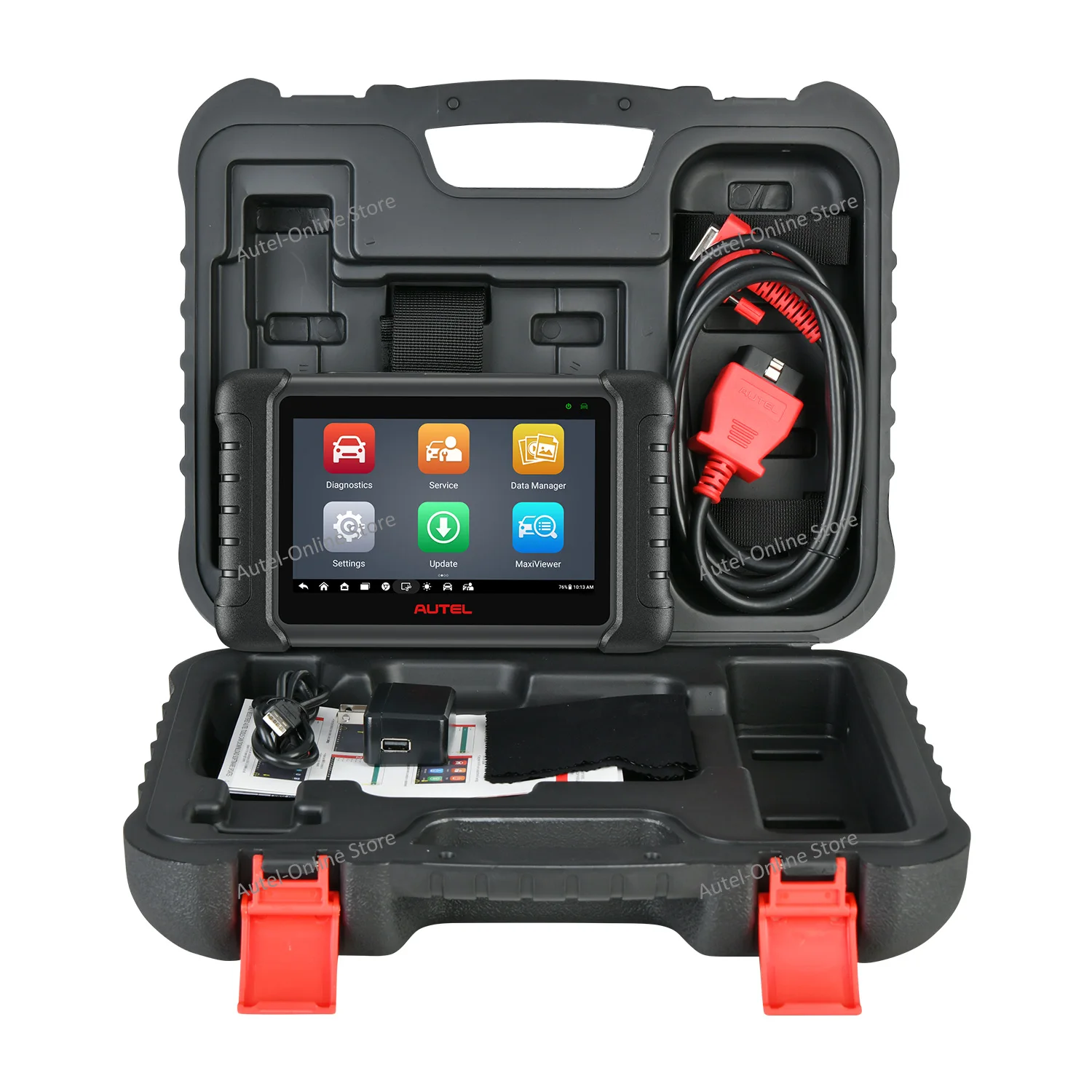

MaxiCheck MX808S package List:

1* Main Unit
1* Main Cable
1* Mini USB Cable
1* Power Adapter
1* Quick Reference
1* Packing List
1* Soft Cloth
1* Carrying Case 380 x300x120 mm

Q1:Why I can’t find the service function I need?

A1:You can find it in your specific car software.
Take a 2006 Chevy Silverado as an example. To get the full list of TCM service functions for this car model, you can enter: “Chevy Software” -- “System Selection” -- “Transmission Control Module (TCM)” -- “Service Functions”. Then follow the on-screen instructions.

Q2:Can I use the IMMO key service to add/delete k-ys?

A2:Yes. Provided the car is equipped with basic & simple antitheft system (most Asian cars, or < 3.5th gen. VAG group vehicles).
NOTICE: Function menu varies by vehicle make, model and year. Welcome to reach us for detailed information.
